EP430
32-bit PCI Host Bridge
See EP420 for 64-bit PCI Host Bridge
Features
- Fully supports PCI specification 2.1 and 2.2 protocol.
- Designed for ASIC and PLD implementations.
- Fully static design with edge triggered flip-flops.
- Efficient back-end interface for different types of user devices.
- Host bridge design includes bus master, bus target and central
system functions.
- Generates standard PCI type 0 and type 1 configuration accesses.
- Combined bus master and target functions.
- Master function
- Initiate PCI memory and IO read/write.
- Automatic transfer restart on target retry and disconnect
- Target function
- Memory or IO read/write
- Configuration read/write
- Support for back-end initiated target retry, disconnect and
abort.
- Supports Zero wait state and user inserted wait state burst data
transfer.
- Dual write buffer supports write data posting.
- User controlled burst and non-burst data transfer.
- Automatic handling of configuration register read/write access.
- Supports user initiated target retry, disconnect, abort and delayed
transaction.
- Parity generation and parity error detection.
- Includes all PCI specific configuration registers.
- Supports high speed bus request and bus parking.
- Optional PCI bus arbiter with fix, rotating, and custom priority.

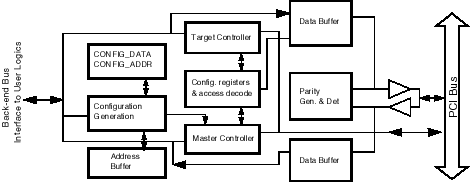

Diagram
Description
The EP430 32-bit PCI host bridge IP is designed for interfacing the host CPU
with the PCI bus. This PCI host bridge core contains options to support 32-bit or
64-bit back-end bus for different CPU. The host bridge core consists of
three functions: bus master, bus target and configuration access generation.
A highly efficient and flexible back-end bus interfaces with the
system CPU and user defined logics such as DMA and memory controllers.
The core utilizes double data buffer design approach which minimizes
design gate count and achieve highest possible data bandwidth at the
same time.
The EP430 32-bit PCI host bridge core allows the CPU or user logic to initialize the
entire system during power-up reset. Configuration Mechanism #1 as
defined by the PCI specification is implemented by the host bridge,
and both type zero and type one transactions are supported. The local
bus CPU requests configuration access on the PCI bus by writing to
or reading from the CONFIG_ADDR and CONFIG_DATA registers which are
contained in the host bridge. The location of these registers can
be specified by the user. The host bridge initiates configuration
read or write transaction to the target device as specified in CFG_ADDR.
Bus Master Function
The PCI host bridge is capable of initiating memory or IO read and
write upon back-end requests. The type of command and the burst size
are specified by the user for each data transaction. Burst size can
be pre-determined by the user for each transaction or changes as the
transaction progress.
Once a master transfer begins, the core monitors the target device’s
signals on the PCI bus and transfer data to the user logic. All different
types of transfer termination are handled by the core. If a transfer
is retry or disconnected by the target, the master core re-starts
the transfer automatically without the assistance of the user logic.
Bus request, bus parking, parity detection and generation all are
handled by the core.
Bus Target Function
The PCI target controller is capable of handling memory and IO accesses
on the PCI. All seven types of PCI memory/IO accesses are support.
Configuration register read and write transactions are supported locally
by the bus target without assistance from the user logic. Data parity
detection and generation are also handled by the core locally.
When a bus master on the PCI bus initiates a PCI transaction, the
core decodes the address and the command and claims the transaction
if the address is decoded to be within the address space of one of
the target devices at the back-end. The PCI transaction is propagated
to the proper target device in simple protocol through the back-end
bus.
The user interface allows the user to control the characteristics
of the access. For example, the user can insert wait state or transfer
data without wait state according to its data bandwidth. Single or
burst transfer, retry, disconnect, delay transaction and target abort
can all be controlled by user logic.
The PCI target controller also responds to configuration read and
write operations. The PCI configuration registers for the host bridge’s
own master and target functions are provided by the core and they
can be accessed in the same way the host bridge accesses the configuration
registers of other PCI devices. When a configuration request targets
the host bridge’s own configuration register, the host bridge functions
as both the master and target for the configuration cycle on the PCI
bus.
Optional Features
The following table summarizes the optional features which can be
provided with the PCI host bridge core as required by user application.
| Options |
Description |
Back-end bus size |
32-bit or 64-bit user logic (CPU) interface |
Unidirectional host bridge |
Remove target function support to minimize gate count. |
Back-end bus type |
The back-end bus can be either a generic simple user interface
or interface directly to specific CPU bus. |
Target bus type |
The back-end interface for the target function can be directed
to a separate memory interface or to the CPU interface. |
Bus arbiter |
Arbitration for the PCI bus. |
Base address registers |
Supports multiple base address registers, memory or IO mapped,
and expansion ROM base address register. |
Address and data multiplexing |
Separate or combined back-end address and data buses. |
Direct FIFO interface |
The back-end target bus can be made to directly interface a
FIFO. |
Burst length |
Automatically limits the burst size beyond user specific boundaries. |
Target burst |
Single transfer support to minimize core size. |
Asynchronous clock domains |
Separate and asynchronous user and PCI clock domains. The core
provides re-synchronization and data FIFO. |

|
