 EC125
32-bit PCI Target
See EC140 for 64-bit PCI Target
Features
- Fully supports PCI specification 2.1 and 2.2 protocol.
- Designed for ASIC and PLD implementations.
- Fully static design with edge triggered flip-flops.
- Efficient back-end interface for different types of user devices.
- Supports compact PCI, Cardbus, Mini-PCI and Power Management.
- Supports zero wait state data burst transfer to maximize memory
bandwidth.
- Zero wait state and user inserted wait state burst data transfer.
- Dual write buffer supports write data posting.
- User controlled burst and non-burst data transfer.
- Multiple address mapping to memory and IO address spaces.
- Automatic handling of configuration register read/write access.
- Supports back-end initiated target retry, disconnect and abort.
- Supports delayed data transaction initiated by user logic.
- Parity generation and parity error detection.
- Includes all PCI specific configuration registers.

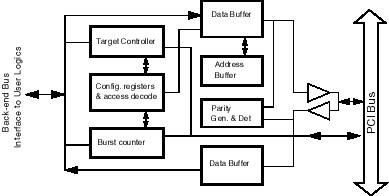

Diagram
Description
The EC125 32-bit PCI bus target IP core is optimized for different applications.
The back-end interface is a highly efficient and flexible back-end
bus which provides for easy integration with other user logic. The 32-bit PCI
target core utilizes double data buffer design approach which minimizes design
gate count and achieves highest possible data bandwidth at the same
time.
The EC125 32-bit PCI bus target controller is capable of handling memory and IO accesses
on the PCI. All seven types of PCI memory/IO accesses are support.
Configuration register read and write transactions are supported locally
by the bus target without assistance from the user logic. Data parity
detection and generation are also handled by the core locally.
When a bus master on the PCI bus initiates a PCI transaction, the
core decodes the address and the command and claims the transaction
if the address is decoded to be within the address space of one of
the target devices at the back-end. The PCI transaction is propagated
to the proper target device in simple protocol through the back-end
bus.
The user interface allows the user to control the characteristics
of the access. For example, the user can insert wait state or transfer
data without wait state according to its data bandwidth. Single or
burst transfer, retry, disconnect, delay transaction and target abort
can all be controlled by user logic.
Optional Features
The following table summarizes the optional features which can be
provided with the 32-bit PCI target core as required by user application.
| Options |
Description |
Mini-PCI and Power Management |
Specific supports for Mini-PCI and Power Management for mobile
applications. |
Base address registers |
Supports multiple base address registers, memory or IO mapped,
and expansion ROM base address register. |
Address and data multiplexing |
Separate or combined back-end address and data buses. |
DAC |
Dual Address cycle to support 64-bit address space. |
Direct FIFO interface |
The back-end bus can be made to directly interface a FIFO. |
Burst length |
Automatically limits the burst size beyond user specific boundaries. |
Target burst |
Single transfer support to minimize core size. |
Asynchronous clock domains |
Separate and asynchronous user and PCI clock domains. The core
provides re-synchronization and data FIFO. |
|
