Product Summary



download 64-bit PCI-X host bridge informationEP423 64-bit PCI-X Host Bridge


  • Fully supports PCI 2.3 and PCI-X protocol 1.0b.
  • Designed for ASIC and PLD implementations.
  • Fully static design with edge triggered flip-flops.
  • Efficient user interface for different types of user devices.
  • User interface and PCI interface runs at different clock speed.
  • User interface independent of PCI or PCI-X configuration.
  • Include data buffer and synchronization logic to bridge the two clock domains.
  • Automatic detection of PCI and PCI-X bus systems.
  • Combined bus master and target functions including split completion.
  • Host bridge function to initiate configuration access with internal CONFIG_ADDR and CONFIG_DATA registers.
  • Supports Zero wait state and user inserted wait state burst data transfer.
  • Dual write buffer in each direction to support write data posting.
  • Automatic handling of configuration register read/write access.
  • Parity generation and parity error detection.
  • Includes all PCI and PCI-X specific configuration registers.
  • Supports high speed bus request and bus parking.

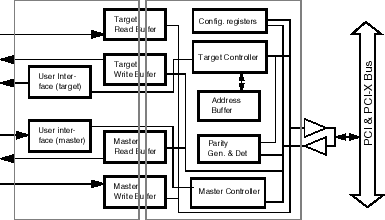

64-bit PCI-X host bridge block diagram
