Product Summary





download Compactflash/PCMCIA slave controller informationEP513 Compactflash/PCMCIA Slave Controller

Features

  • Functions as card interface on the card side.
  • Support PCMCIA and CompactFlash devices.
  • Operates asynchronously to the host devices in the other side of the card socket.
  • Synchronous interface to user logic in the card side.
  • Double synchronization of control signals.
  • Supports up to the highest speed devices.
  • Built-in control registers including COR, CS, PRR and SCR.
  • Supports CIS pointer structure defined by user.

Diagram

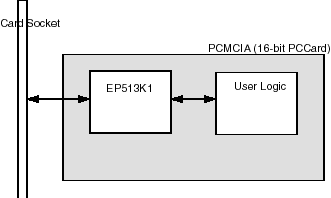

Compactflash/PCMCIA Slave controller block diagram
